8ternityFiber-OM4 Cable 30M/98FT, 10GB/40GB/100GB LC to LC Patch Cable Multimode Duplex 50/125um, Length Options: 0.2m-100m, 2mm LSZH
Product details
| Management number | 226192412 | Release Date | 2026/05/09 | List Price | $11.20 | Model Number | 226192412 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

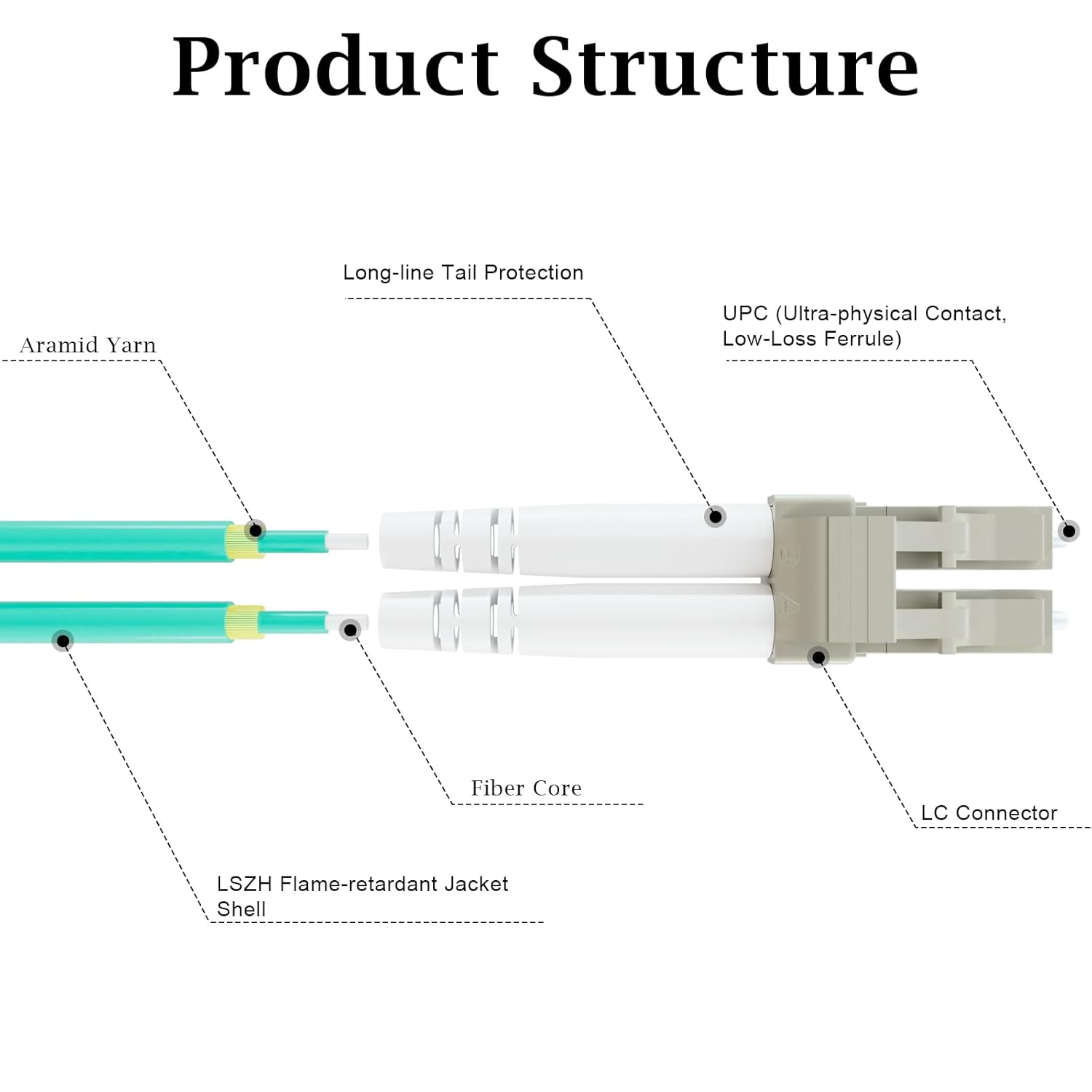

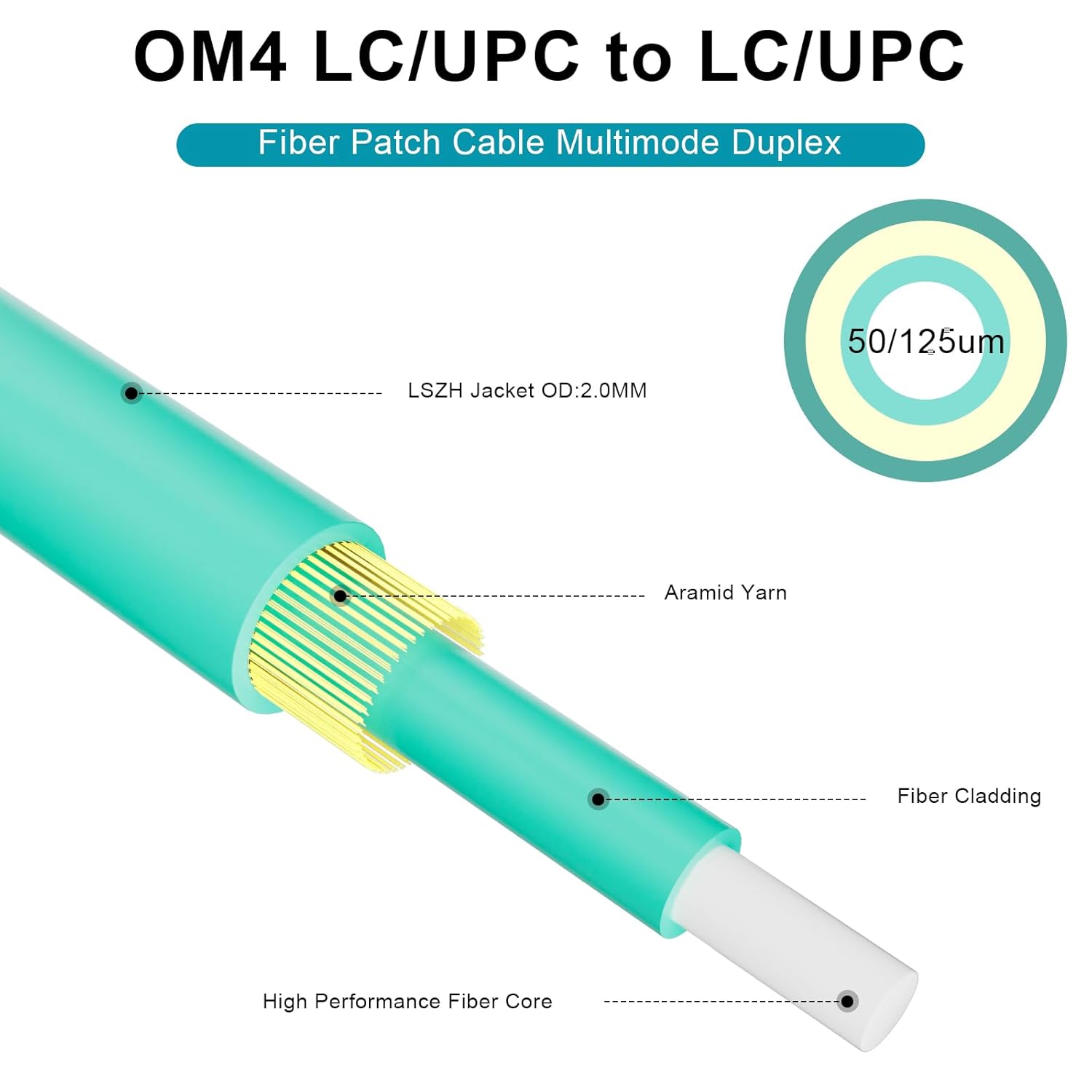

- 【Structural Design】You will get 8ternityFiber OM4 LC/UPC-LC/UPC 30M 1PCS; OD: 2.0mm; Mode: 50/125um; Wavelength: 850 nm to 1310 nm. Adopt LSZH jacket, high-performance flame retardant; Adjustable connector clamp prevents the interface from loosening; Duplex clamp allows quick identification of Tx and Rx in case of connection failure; UPC polished and Japanese-made zirconia ceramic ferrule has high return loss, low insertion loss, and low attenuation characteristics.
- 【Minimum Bend Radius】OM4 duplex lc upc fiber patch cable adopts 50/125um core and cladding, which is insensitive to bending, easy to strip and weld, ensuring low optical loss and stable transmission (insertion loss ≤0.3dB, return loss ≥30dB), which is very suitable for 20 bends in cabinets or high-density installation spaces. It is an ideal choice for short-distance communication applications that support multiple light propagation modes or paths.
- 【Long-Distance Transmission】OM4 patch cable has a higher transmission rate and bandwidth and can be used for Ethernet below 100 Gbps. It is most commonly used for 10G Ethernet and mostly for 10G/40G data center fiber optic cabling. 1Gb Ethernet distance 550 meters, 10Gb Ethernet distance 300 meters, 40Gb Ethernet distance 300 meters, 100Gb Ethernet distance 200 meters, wavelength 850 nm, minimum effective mode bandwidth 2000 MHz. Km@850nm.
- 【Widely Used】OM4 multimode optical fiber is mainly used for high-speed data transmission in medium and short-distance applications. It is widely used in network applications such as data centers, LANs, SANs, etc. that require high bandwidth and fast transmission speeds. Including data center interconnection, enterprise intranets, telecommunication networks, etc. Whether you are building a new network or upgrading an existing network, it can meet your needs.
- 【Satisfactory Service】 8ternityFiber has focused on optical fiber production and services for 20 years and has professional experience in optical cables. Each strict process, including production, testing, initial inspection, patrol inspection, final inspection, and shipment inspection, ensures the quality of each cable. We also have a professional customer service team. If you have any questions, please contact us.
| ASIN | B0DPKN9XKH |
|---|---|
| Model | OM4MD30M |
| Brand Name | 8ternityFiber |
| Cable Type | Fiber Optic |
| Model Name | OM4MD30M |
| Item Weight | 0.21 Kilograms |
| Manufacturer | 8ternityFiber |
| Connector Type | Lc to Lc |
| Outer Material | LSZH |
| Number of Items | 1 |
| Connector Gender | Female-to-Female |
| Compatible Devices | Server |
| Included Components | OM4 LC/UPC-LC/UPC |
| Indoor Outdoor Usage | Indoor |
| Other Special Features of the Product | Data Transfer |
